I12 3001-3050 & 4251-4270 - Jugoslavia & Romania 1963 & 1974

[Dimitris]

Hello,

I12 open 2-axled wagons, Operation numbering: ????


09.09.2012, 3027, Argos railway station.

coupling and buffers

coupled

rod of coupling-hook

suspension with 7 leaf-springs (Lagen)

Thanx

Dimitris

[Dimitris]

29.09.2013. 4269, Aigio railway station.

8 leaf-springs suspension (8-lagig)

brakes (Bremsbacken) [red arrow] + brake-triangles (Bremsdreiecke) [blue arrow] + brake-triangle - protector (Bremsfangschlingen) [yellow arrows]

brake-cylinder + balancers

hand-brake levers (Umstellvorrichtung)

Thanx

Dimitris

[christo]

Operation numbering: ????

We need Jason for that. I think there were two types judging by the appearance of the middle doors.

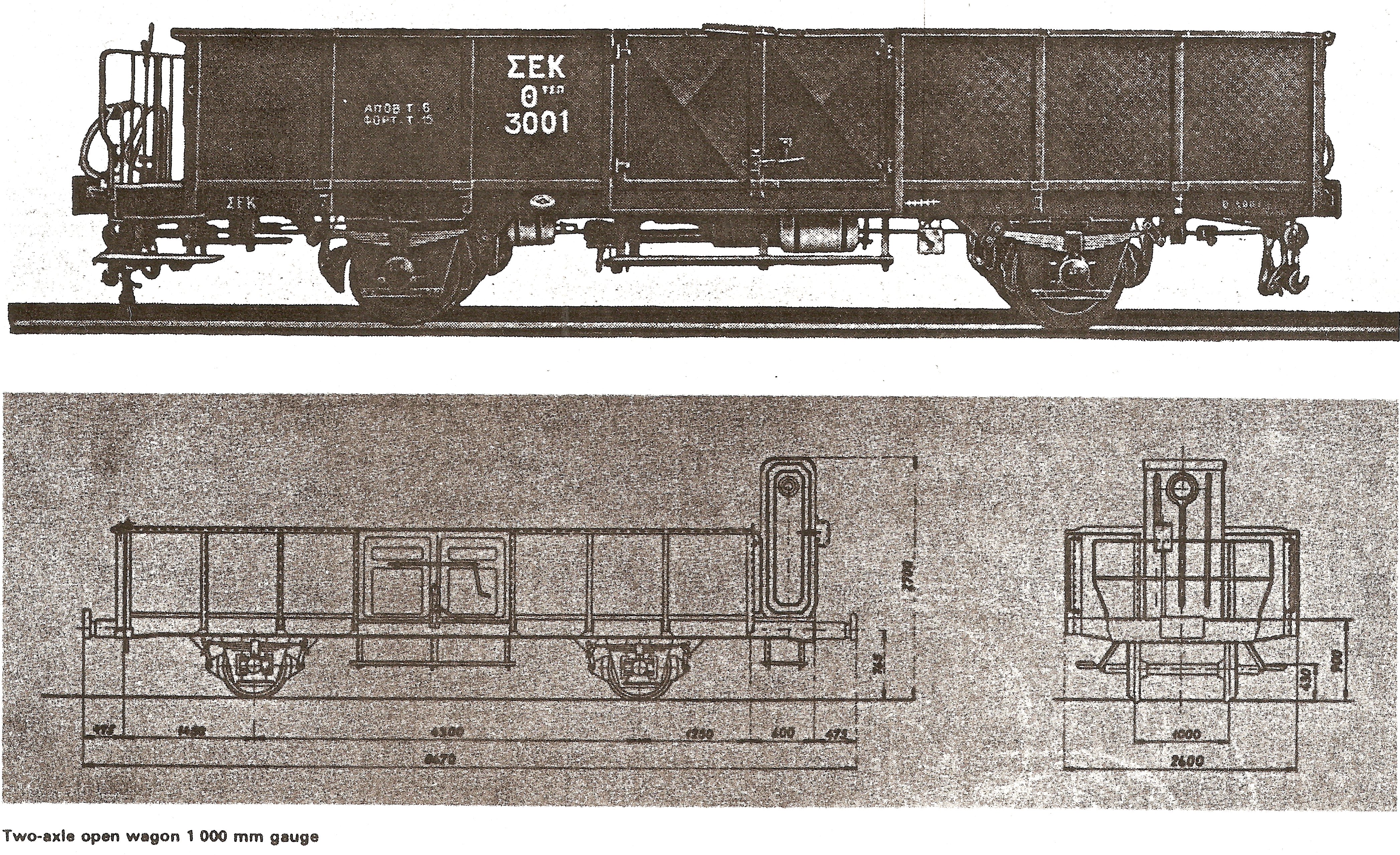

Works photo and drawing showing original numbering.

christo.

[GAZKGK]

Three series ...

ΘΤΣΠ / Ι12 3001 - 3050 built by FABRIKA SINSKIH VOZILA SUBOTICA, BRATSTVO - JUGOSLAVIJA, 1963 ***

Ι12 4251-4266 - built by UZINA DE VAGOANE ARAD, ROMANIA, 1974

Ι12 4267-4270 - built by UZINA DE VAGOANE ARAD, ROMANIA, 1974 ( + braking hut ).


*** the sides of three of them were replaced by folding, wooden ones.


Dimitris, the two Jugoslavian ones at Argos (3019 & 3027) are no longer owned by OSE, but were later used by ΘΕΜΕΛΗ contractor company.



Christo, i didn't know that there were Jugoslavian ones with a braking hut ... Did ose ever really had any ?

[christo]

Christo, i didn't know that there were Jugoslavian ones with a braking hut ... Did ose ever really had any ?

Jason they were too far away from Thessaloniki and therefore I am not sure. I saw photos of them with brake platforms but no brake huts. They might have been supplied with them but were removed at a later date. If I find any more evidence I will be presenting it here

christo.

[Dimitris]

Kalamata railway station, 18.10.2014:

Operating-number: 4260


coupling
air-reservoir

Operating-number: 4270



Operating-number: 4255




Operating-number: 3031


axle-hanger (Achshalter), leaf-springs (Blattfeder), spring-hangers (Federböcke & Laschen/Schacken), axle-box (Achslager), axle-box-protector (Achshaltersteg), brake-backs (Bremsbacken)
axle & brake parts: axle-box (red arrow), axle-hanger (light-blue arrow), axle-box-protector (light-green arrow), brake-backs (green arrows), brake-triangles (Bremsdreiecke) (orange arrows), brake-triangle-guides (Bremsfangschlingen) (yellow arrow)


Dimitris
