OSE Σ1 Ballast Hoppers 600 6 & 627 5

Re: OSE Σ1 Ballast Hoppers

Postby GAZKGK » Sun Nov 03, 2013 12:01 am

Some of the ''627 5''s, ex- TATRA Z2.

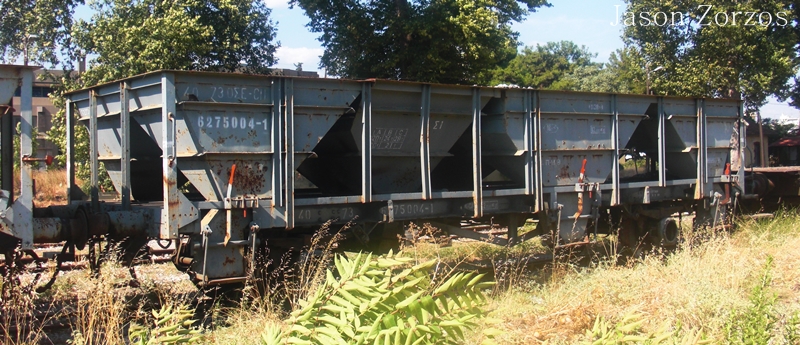

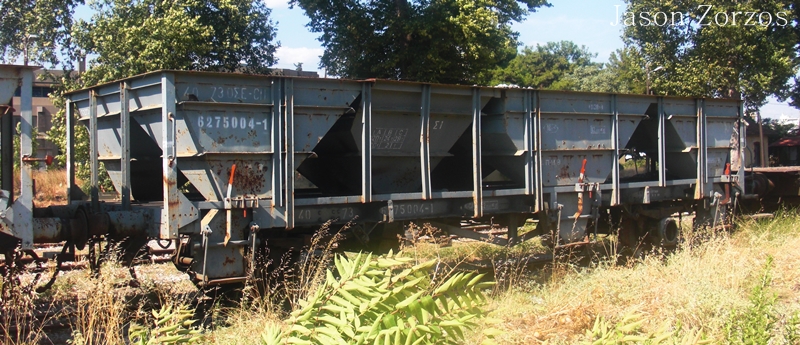

40 73 627 5 004-1 - K.S.A.

Σ1 40 73 627 5 004-1 (ΚΣΑ).JPG

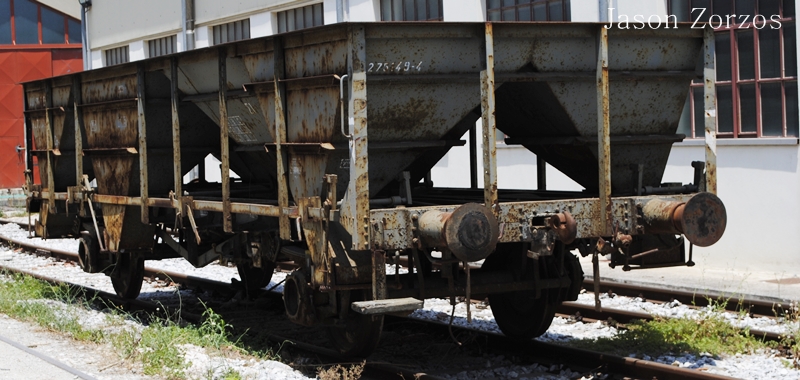

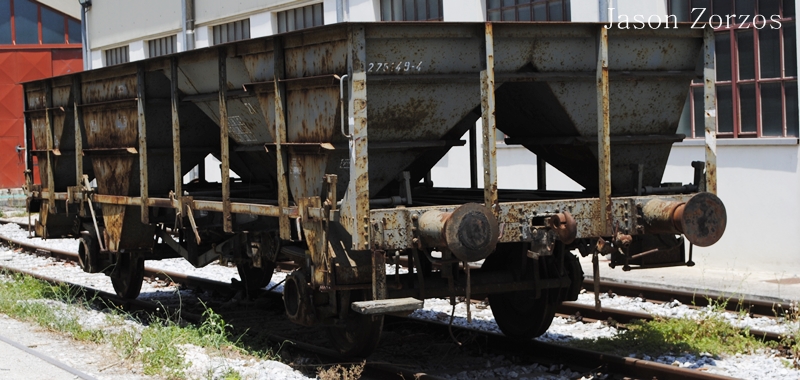

40 73 627 5 050-4 - S.K.A.

Σ1 40 73 627 5 050-4 (Σ.Κ.Α.).JPG

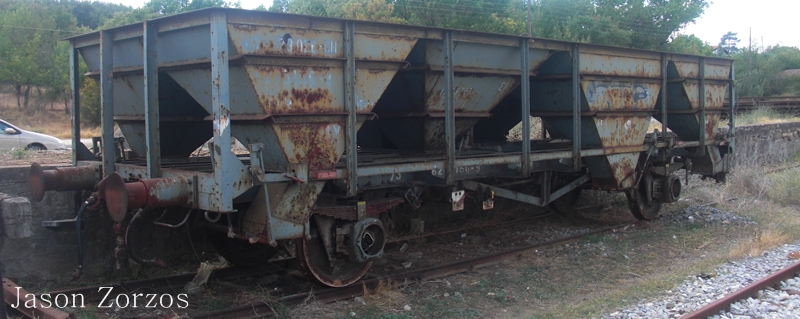

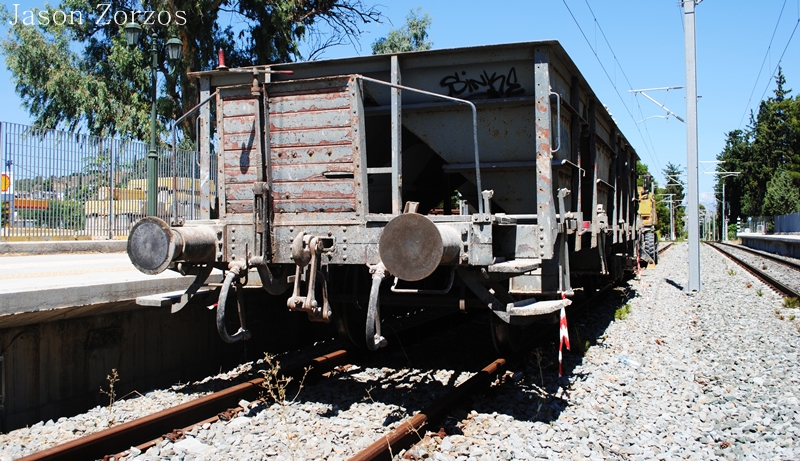

40 73 627 5 085-0 - Sfendali

Σ1 40 73 627 5 085-0 (ΣΦΕΝΔΑΛΗ).JPG

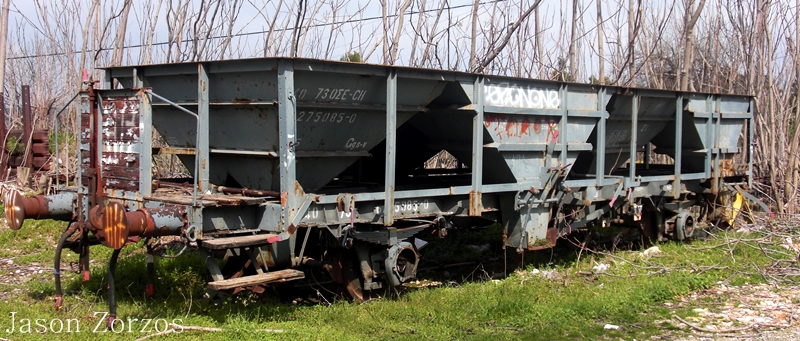

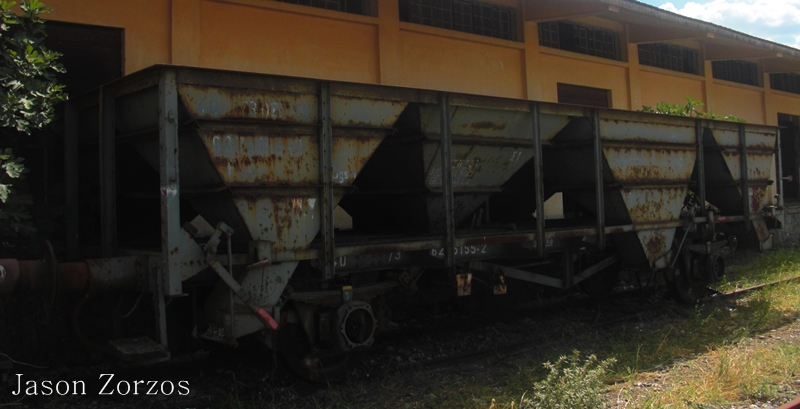

40 73 627 5 149-4 - Volos

Σ1 40 73 627 5 149-4 (ΒΟΛΟΣ).JPG

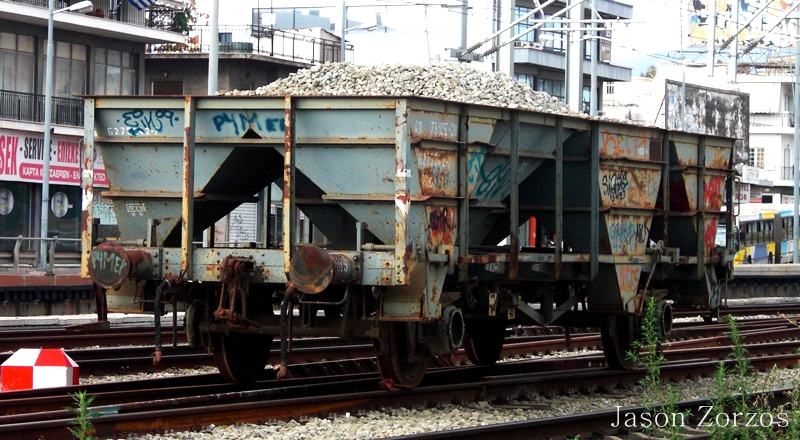

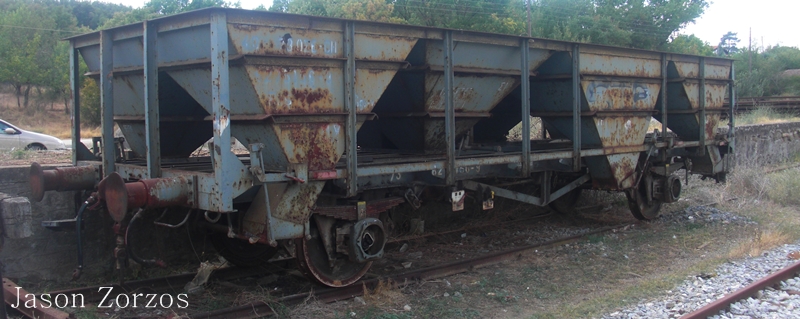

40 73 627 5 155-2 - Mesti

Σ1 40 73 627 5 155-2 (ΜΕΣΤΗ).JPG

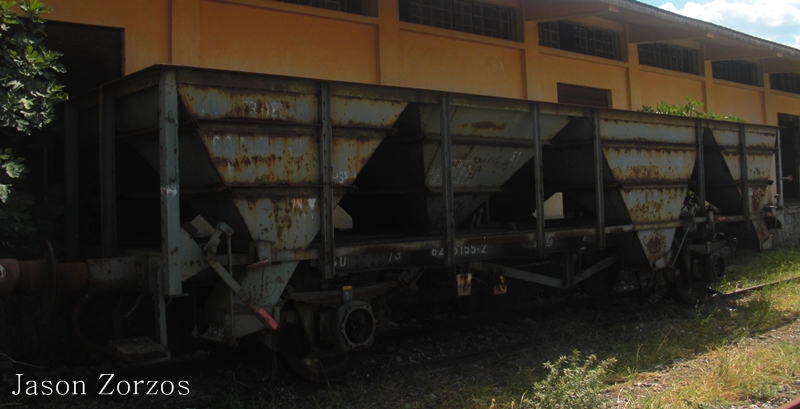

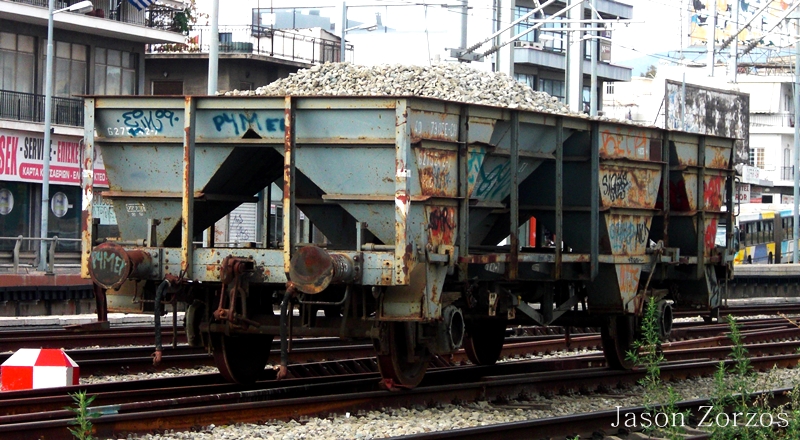

40 73 627 5 156-9 - Kirki

Σ1 40 73 627 5 156-9 (ΚΙΡΚΗ).JPG

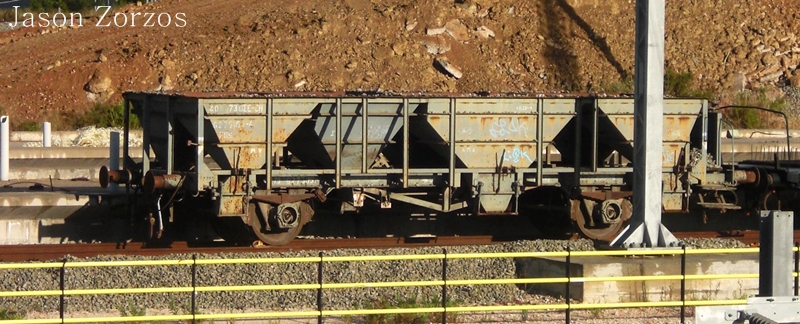

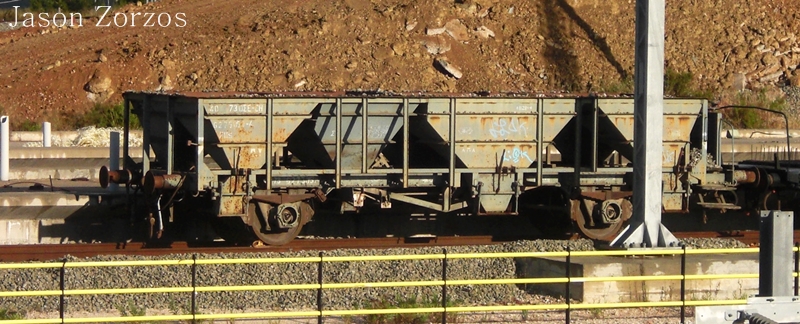

40 73 627 5 182-5 - Avlida

Σ1 40 73 627 5 182-5 (ΑΥΛΙΔΑ).JPG

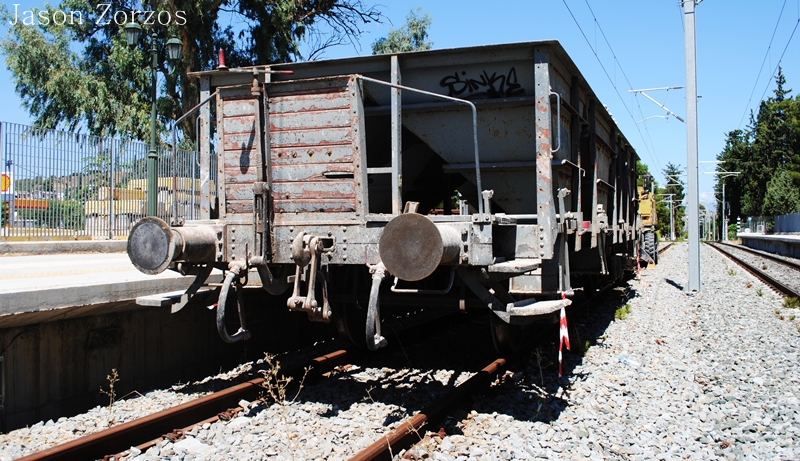

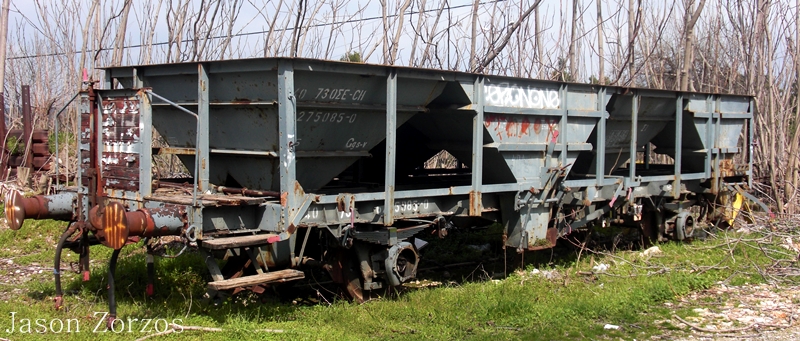

40 73 627 5 242-7 - Agii Anargiri

Σ1 40 73 627 5 242-7 (ΑΓ.ΑΝΑΡΓΥΡΟΙ).JPG
User avatar
GAZKGK

Posts: 486
Joined: Thu Jul 25, 2013 11:21 am

Re: OSE Σ1 Ballast Hoppers 600 6 & 627 5

Postby Dimitris » Tue Dec 31, 2013 7:13 pm

Abandoned now railway station of Agios Dionysios of Piraeus, 29.12.2013

40 73 627 5187-4

40 73 627 5046-2

40 73 627 5026-4

40 73 627 5049-6

Thanx

Dimitri
User avatar
Dimitris

Posts: 411
Joined: Tue Jul 23, 2013 4:59 pm

Re: OSE Σ1 Ballast Hoppers 600 6 & 627 5

Postby Dimitris » Tue Dec 31, 2013 7:15 pm

Abandoned now railway station of Agios Dionysios of Piraeus, 29.12.2013.

Repeat-details: 40 73 627 5049-6


Imagemanufacturer
Imagebufferplank - details
Imagechassis-beams and screw-coupling rod - details. Rod is continues till the other side of the wagon connected to the other hook. In the middle, the rod has a system of springs that are pressed, when coupled. In freight wagons, the springs of the buffers are stiffer than the springs of the couplings, whereas in passenger wagons, the opposite exists. Coupling-rod must be stiffer for passsengers.
Imagescrew-coupling rod in the middle
Imageside-detail
Imageairbrake
Imageairbrake-end
Imagetype of brake-system used Hik GP / 1931 S (Schienenfahrzeuge) Hildebrand-Knorr-Bremse (Hik) für Personen- und Güterzüge (http://de.wikipedia.org/wiki/Knorr-Bremse)
ImageBrake-system: Air-reservoir / Luftbehälte (red arrow), one of the brake-balancers connected to the Air-cylinder / Bremshebel des Bremszylinders (blue-arrow), triangles of the brakes / Bremsdreiecke (yellow arrow), vertical balancers for the movement of the brakes on the Wheel-rim (grey arrow), protectors of the brake-triangles / Bremsfangschlingen (green arrow).
Imagedistributor / Steuerventil
Imagepart, where the brake-releaser / Lösezüge (red arrows) is connected with the distributor (light-blue arrow)
Imagebrake-cylinder (orange arrow), balancer (green arrows), brake-releaser (purple arrows)
Imageview from the other side: distributor (Red arrow), balancer (green arrows), brake-releaser (purple arrows)
Imageaxle (black arrows), vertical-balancers (blue arrows), brake-triangles (Red arrows), brake-triangle-protectors (orange arrows)
ImageWheel-details according to UIC: w-irons / Achshalter (green arrow), sliders / Gleiter (yellow arrow), w-iron protector / Achshaltersteg (pink arrows), leaf-springs / Blattfeder (Red arrows), spring-tighters / Federbund (purple arrows), spring-hangers / Federböcke und Laschen (blue-arrows), axle-box / Achslager (black/yellow arrows), roller-bearing / Lager (black arrow), wheels (white arrow). As the part - Federbund (purple arrows) is concerned, the lower part of it is attached to the upper-part of the axle-box by a small-rod, as the latter has a hole to fit. For a correct model, the wheels are of this type for the American/European freight wagons: http://www.wagenwerk.de/h0de/fahrzeugba ... 77-mm.html

Finally, I have made some measurements on the buffer-planks and the Wheel-dia., but they are not completed, because I forgot to take a measurement on the buffer-length from the plank. I'll give the ones I have now, and next time, I will scan the measurements, I wrote on a Paper, and post them here. These are the following:

1./ Buffer-dia.: 380mm = 4,368mm in HO
2./ Wheel-dia.: 912mm. However, this diameter is not correct as it's counted torn (wear & tear), as on 2-axled cars, there are 2 different diameters: 1000mm (= 11,494mm in HO) for short 2-axled cars,i.e. Z2 / Ggs, Ψ2, Ψ1, Σ1, and 920mm (= 10,57mm in HO) long 2-axled cars, i.e. Ψ3, Ζ5, Ζ3, according to UIC.
3./ Shunting-handrails below buffers:
L1 / Handrail-dia. = 20mm =0,230mm in HO
L2 (yellow arrows) = 265mm = 3,046mm in HO
L3 (green arrows) = 372mm = 4,276mm in HO

I give this measurements and pics, if you all decide to construct a wagon like that in HO. I will make more pics tomorrow, and the last measurement mentioned. I can take the wagon-length and other measurements.

Thanx

Best wishes for 2014

Dimitris
Last edited by Dimitris on Tue Dec 31, 2013 7:25 pm, edited 1 time in total.
User avatar
Dimitris

Posts: 411
Joined: Tue Jul 23, 2013 4:59 pm

Re: OSE Σ1 Ballast Hoppers 600 6 & 627 5

Postby christo » Tue Dec 31, 2013 7:22 pm

Dimitris, excellent detail photos but it will take a brave man to model this wagon correctly, with discharge chutes, brake gear etc. :cry:

christo.
User avatar
christo

Posts: 3134
Joined: Wed Jun 05, 2013 3:23 pm
Location: Uckfield, Sussex, U.K

Re: OSE Σ1 Ballast Hoppers 600 6 & 627 5

Postby Dimitris » Tue Dec 31, 2013 7:27 pm

Yes, Christo, I agree as well.

Technical drawings are the best, for modelling a wagon like that from scratch.

:(

Also excellent effort / construction for the OSE N7 Rgmms Flatbeds East German-built 1990. It looks perfect to me.

viewtopic.php?f=13&t=163&start=20

Thanx

Dmitri
User avatar
Dimitris

Posts: 411
Joined: Tue Jul 23, 2013 4:59 pm

Re: OSE Σ1 Ballast Hoppers 600 6 & 627 5

Postby Dimitris » Sun Jan 19, 2014 1:38 am

@Christo:

Hello.

About the brake-system: is exactly that, made by etched nickel/silver and cast brass parts by UDO BÖHNLEIN. The type is HILDEBRAND KNORR 1931 (HiK GP / Güterwagen / Personenwagen).

As you see from the pics, the nickel/silver parts contain the balancers (Bremshebel), the connection of the levers (empty/full) [Verbindungsgestänge + Umstellcorricthung] and the latter as well. As the brass cast brass parts are concerned, they contain mainly the air-cylinder (Bremszylinder), the distributor (Steuerventil) the air-resevoir (Luftbehälte) + the aid air-resrvoir (if needed). However, the latter is not needed for Σ1, as it has one air-reservoir.

Dimitris
User avatar
Dimitris

Posts: 411
Joined: Tue Jul 23, 2013 4:59 pm

Re: OSE Σ1 Ballast Hoppers 600 6 & 627 5

Postby Dimitris » Sun Jan 19, 2014 3:10 am

18.01.2014: Some more pics of the 4 Σ1 2-axled ballast hoppers in old station of Agios Dionysios of Piraeus.

40 73 627 5187-4
Imagecoupling
Imagebuffers
Imageriveted bufferplates (genietete Pufferteller) [red arrow] + "wave"-angle on the buffer-'tube' (Kniewelle der Hülse) [blue arrow]
The buffers of this wagon are of the type: Uerdigen, with length; 612,5mm (measured) = 7,040mm in HO + bufferplate-dia.: 380mm (measured) = 4,368mm in HO. However, the Uerdigen was constructed with 650mm length and dia. of 370mm and 450mm, but other lengths and dia. existed on this type, too. It was also constructed with 2 different buffer-plates, either riveted bufferplates (genietete Pufferteller) / and or welded bufferplates (geschweißte Pufferteller), as well as with flat buffer-"tubes" or with "wave"-angles.
Imagesprung-buffers made from WEIMANN
Imagebuffer-backs made from WEIMANN

40 73 627 5026-4
Imagebuffers with flat-"tubes" + couplings

40 73 627 5046-2
Imagecouplings + airbrake-hoses + buffers with flat-"tubes"
Imagecouplings + airbrake-hoses + buffers with flat-"tubes"
Imagecouplings + airbrake-hoses + buffers with flat-"tubes"
Imagecouplings + airbrake-hoses
Imagemaximum distance of movement of buffer via the spring through the "tube" (blue-line)

40 73 627 5187-4
Imageit is slightly shown that someone sleeps underneath
Imagebufferplank
Imagebufferplank

Thanx

Dimitris
User avatar
Dimitris

Posts: 411
Joined: Tue Jul 23, 2013 4:59 pm

Re: OSE Σ1 Ballast Hoppers 600 6 & 627 5

Postby Dimitris » Mon Jan 20, 2014 3:23 am

Measurements of the buffer-plank (buffer - length & dia., Wheel-dia.)

I'll try next time to make some measuremtns on the following, i.e.: perpenducular-beams of the suppports of the silos, the silos, the devices that throw the ballast on the tracks, as well as the total length of the wagon, the width of the buffer-beam, and the height of wagon measured from the middle of the buffer-plate to the Top-of-rail. Hopefully.... :roll:

Thanx

Dimitris
