OSE Ψ refrigerators - Model upgrading & details by P87 - standards

[Dimitris]

And an almost underneath view:


Dimitris

[Dimitris]

Corrections of the connections of the ends of the airbrakes-hoses to the existing brake-system:

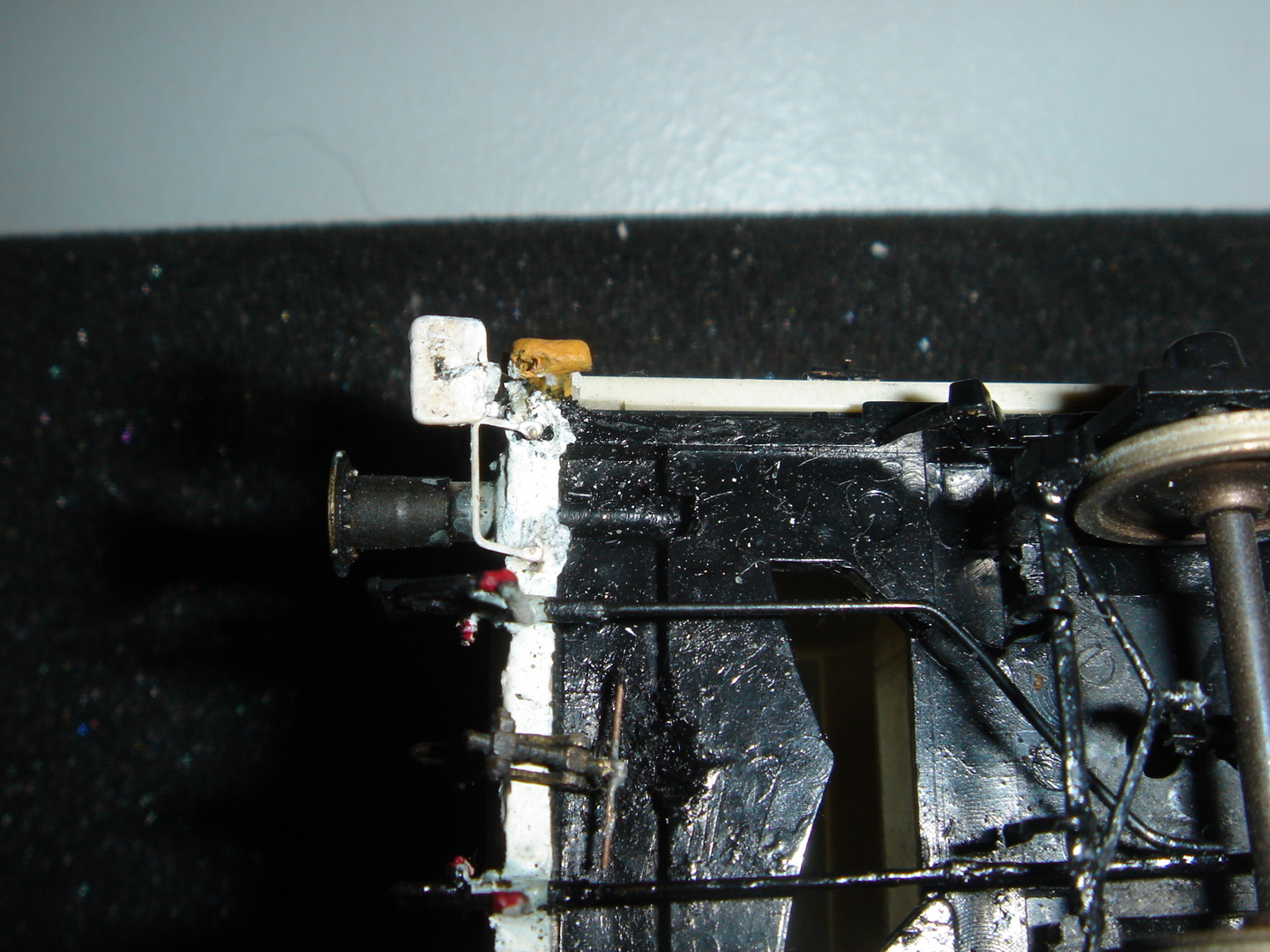

side-1

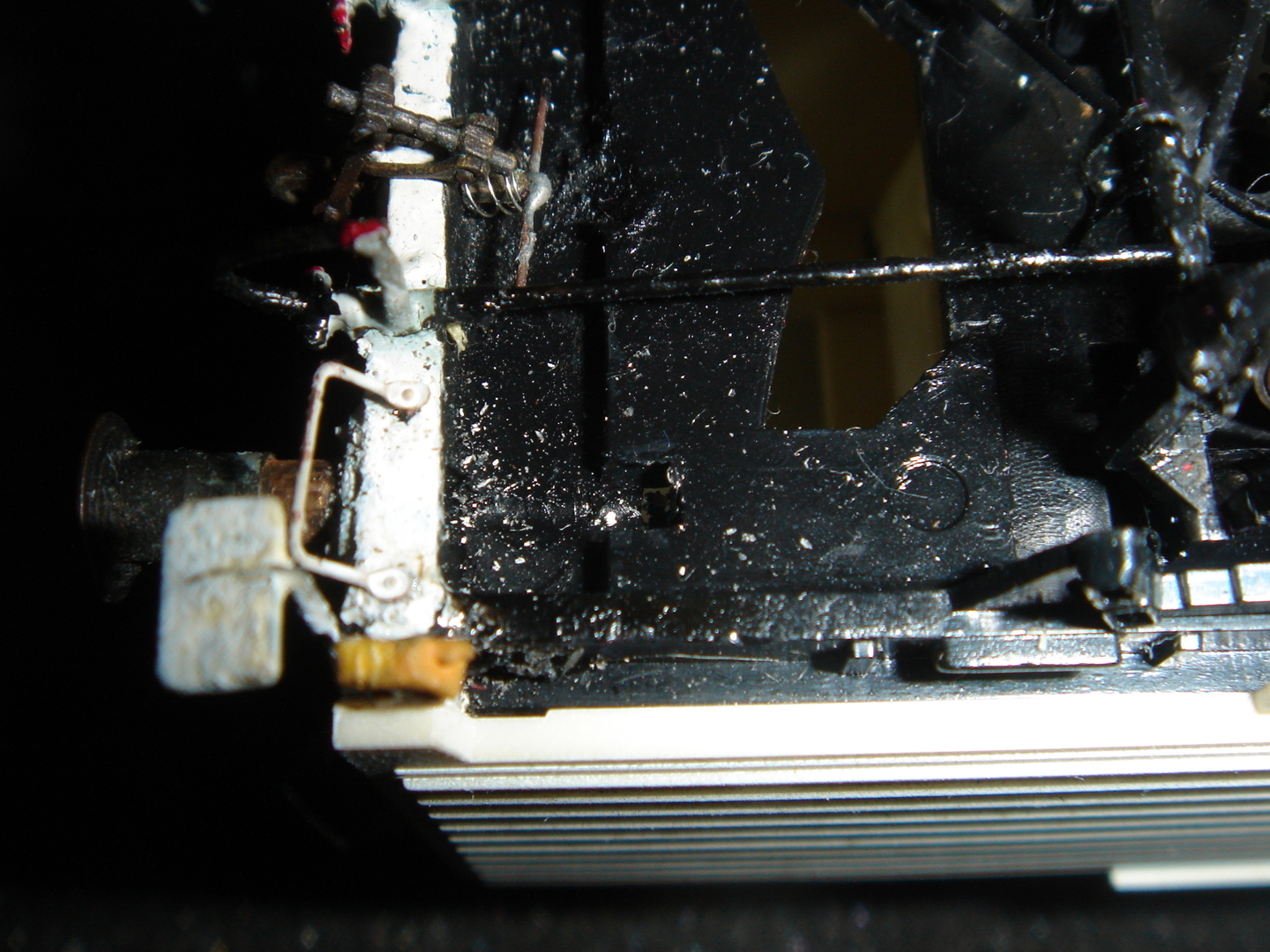

side-2

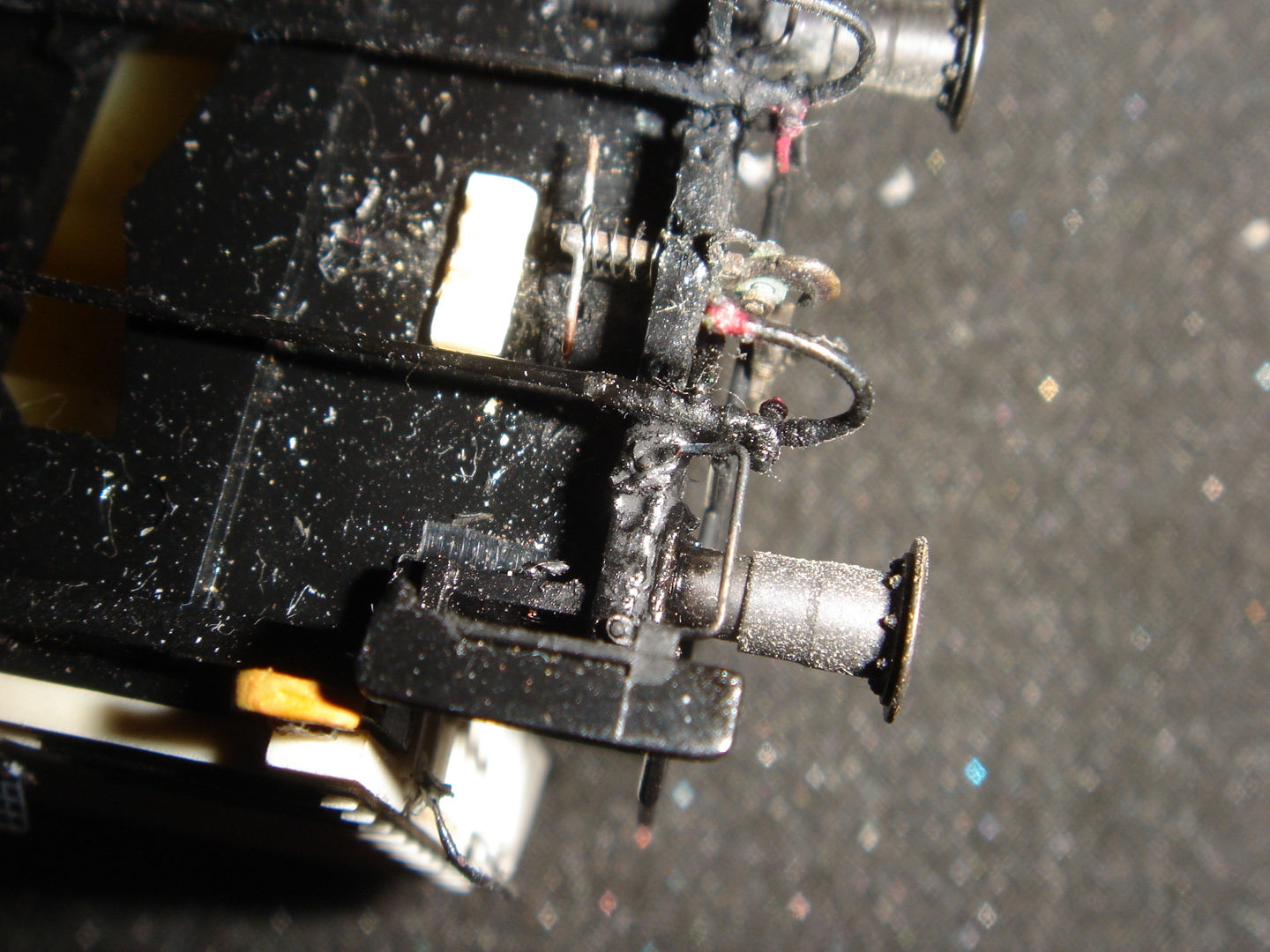

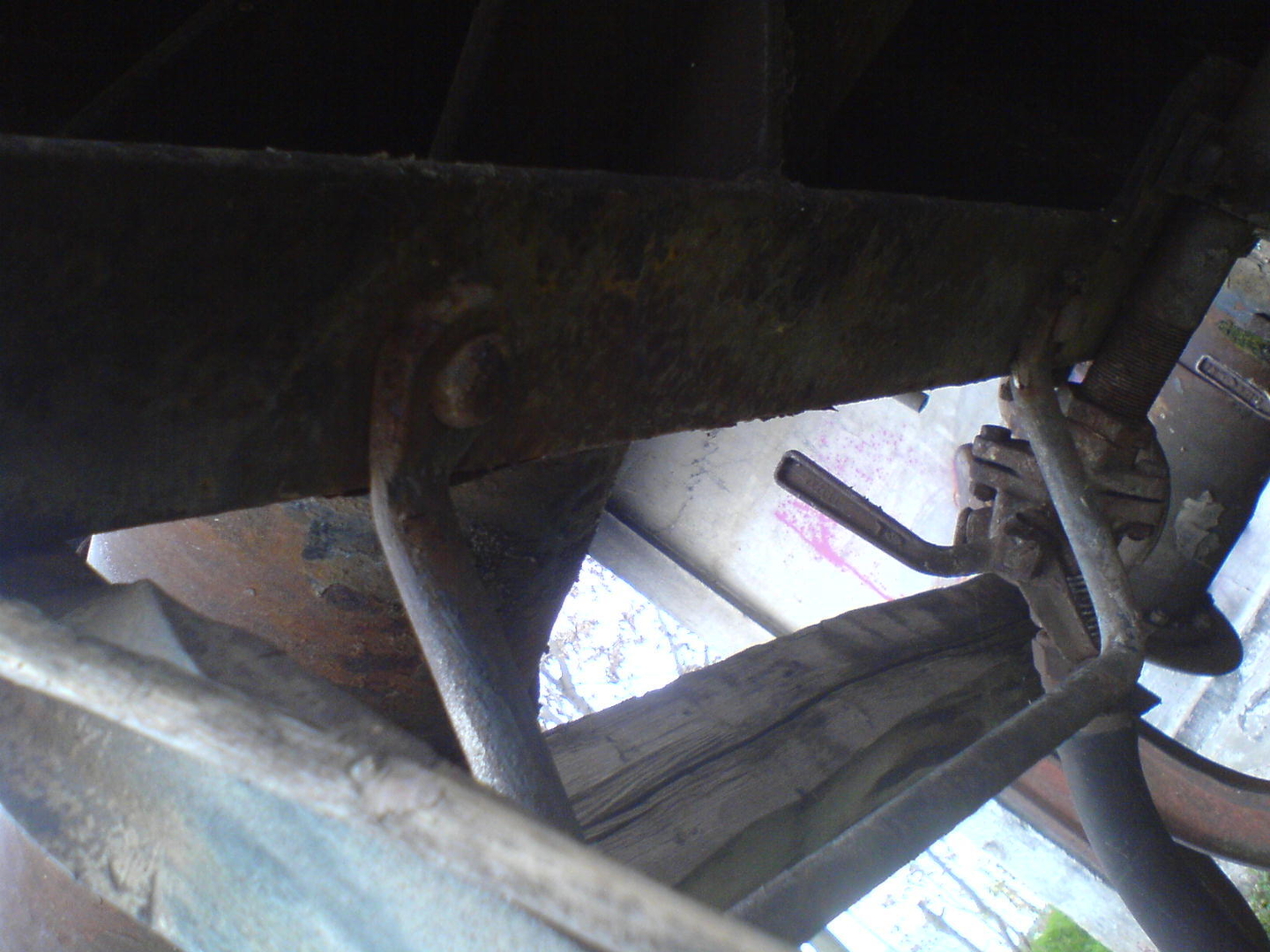

side-2 - PROTOTYPE: The green-lines show were the air-tubes of the brake-system connect to the airbrake-hoses - red-lines. Side-2 refers to the end of the wagon were the "hand-brake - bridge" (Bremsbühne) is.


Dimitris

[Dimitris]

Final correction of the parts of the chassis:

1./ 1x UIC-shunting-step (Rangierertritte) replaced (red-arrow).

view of front face

2./ Connections between the Air-hoses and the rest of the brake-system completely corrected to the prototype (red-arrows).
side-1
prototype - side-1
side-2
prototype - side-2

3./ UIC-brake-releasers (Bremslösezüge) installed (blue-arrows).

side-1
side-1
side-1
side-2
side-2
prototype

Now chassis is 100%-completed!

Dimitris

[Dimitris]

Note. Although I HANDMADE the handrails of the body-shell, I used 0,2mm-brass-wire instead of rivets (Nieten), like the prototype. According to the measurements (red-circle), rivets of: 0,4mm-head-dia.+ 0,3mm-shaft-dia. + 0,4mm-shaft-length, will be used.




05.01.2013 - Thiva railway station

Dimitris

[Dimitris]

Correction of the distributor of air (Steuerventil) (blue-arrows):
upper-view
view-1
view-2

Dimitris

[Dimitris]

Total-correction of the air-distributor (Steuerventil) & 1xbrake-releaser (Bremslösezüge) [blue-arrows]:







Total-view of whole brake-system (Bremsanlage) underneath:


I tried to make the UIC-shunting-steps (Rangierertritte) as straight as I could.



Dimitris

[Dimitris]

Final correction of 1xbrake-releaser (Bremslösezüge) [blue-arrows]:



UIC-shunting-steps straightened to the horizontal as better as I could (yellow-arrows):


Dimitris

[Dimitris]

HANDMADE correct hanger of the brake -releasers.

Side-1:
model
prototype, Rentis, 02.10.2015

Side-2:
model
prototype, Rentis, 02.10.2015

Dimitris

[Dimitris]

Correct distance of end of coupling-hooks & end of buffer-plates:
side-1

I 've corrected the shunting-handrails, using on their ends: 0.35mm-head with 0.3mm - shaft rivets:
side-1
side-2
side-2
prototype

I 've corrected the shunting-steps, using on their ends: 0.35mm-head with 0.3mm - shaft rivets:
model
prototype

[Dimitris]

I completed the HANDMADE handrails, the handbrake and the lever of the distributor in the brake-system.

-The HANDMADE handrails are made by 0,3mm brass-wire and their ends are flatened for adding 0,30mm-rivets with o,35mm-heads.
- The handbrake is out of brass-casting from WEINERT MODELLBAU.
- The lever is made out of etched-nickel/silver from UDO BÖHNLEIN.












Dimitris
