OSE I8 Open/Bogies wagons France 1967-1970

[christo]

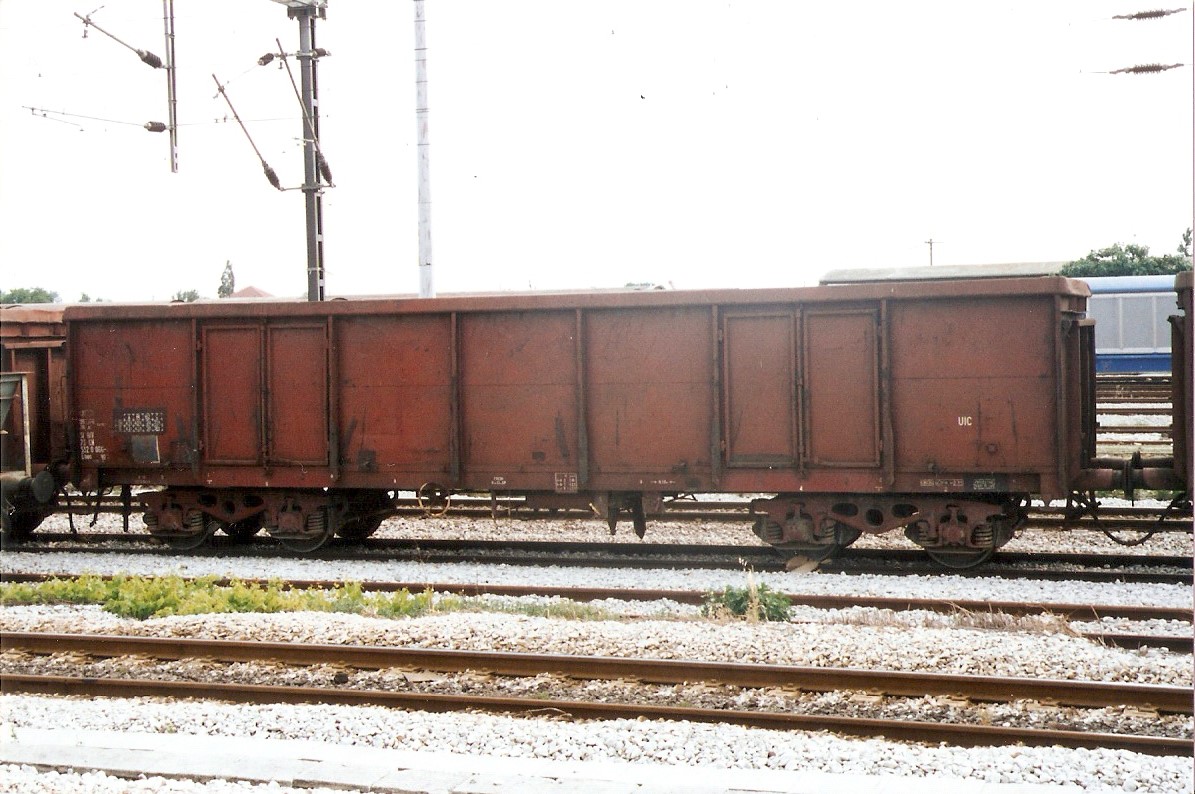

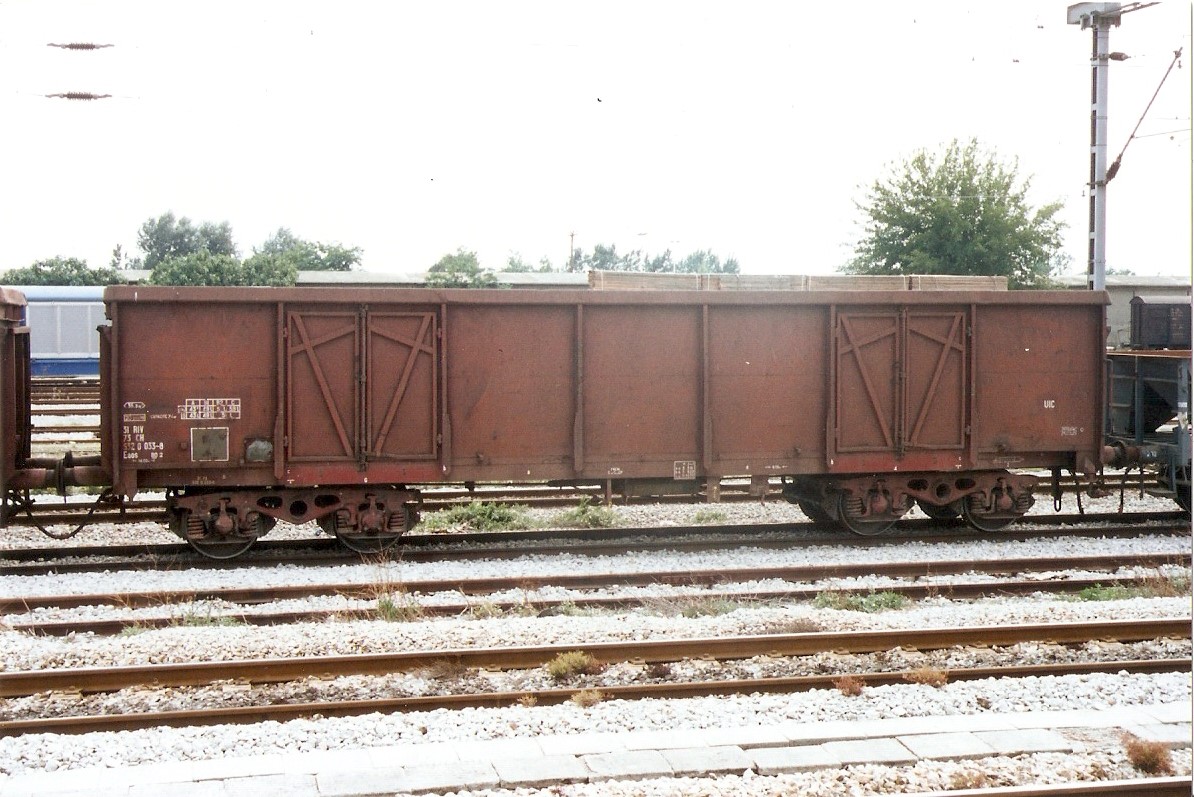

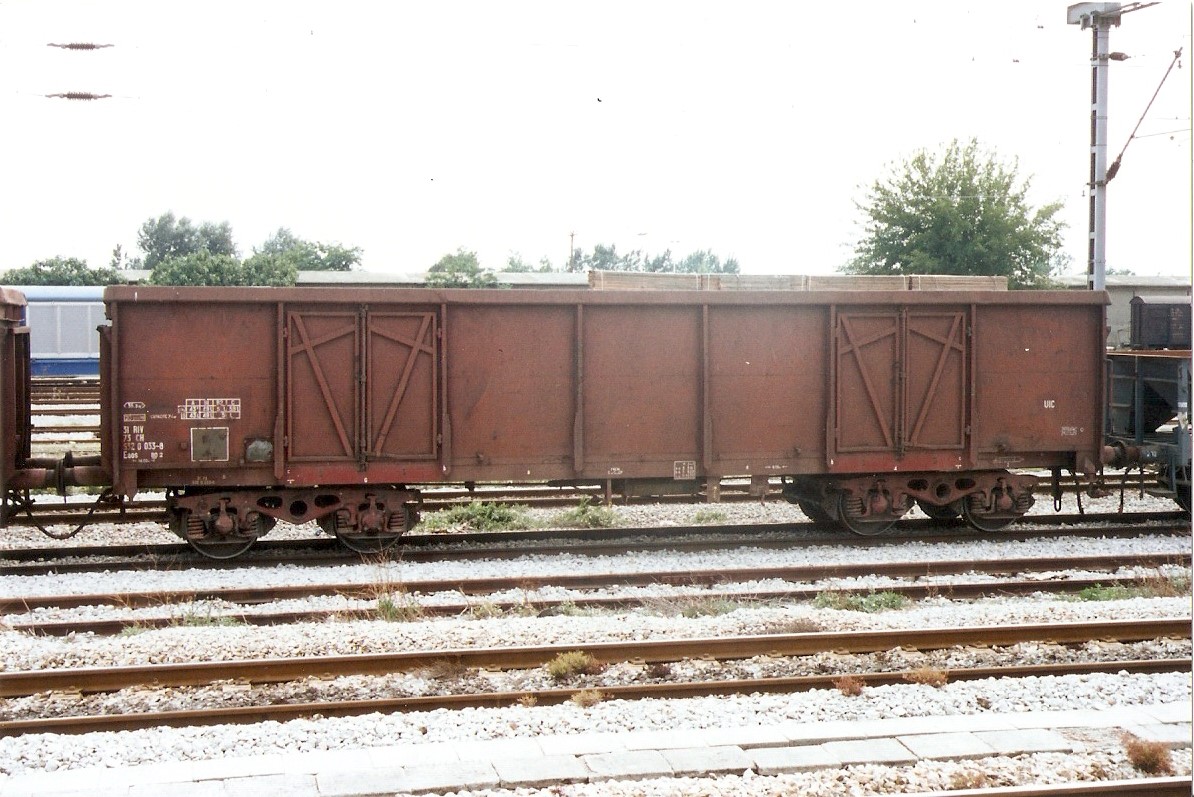

Both Photos Balkanmodels: May 2001. Two wagons from the same batch of 100 wagons from France 1970 outside the Railway Museum in Salonica. Note the different types of doors and the typical French Y bogies.

I had taken a whole film with details at that time, which I sent to Klein Modellbahn with a view of making a model. The model did appear later but it was exclusively sold by Diorama in Athens. I let you draw your own conclusions.

Very recently someone else enquired about that film but wanted it for free.

Olympus has nice pictures of these models on his web site http://hellenicrailwaymodels.blogspot.c ... ar_22.html

christo.

[GAZKGK]

Series I8 31 73 532 0 001-100 - Eaos, built by A.N.F. BLANC - MISSERON CRESPIN - NORD in years 1967, 1968, 1969 and 1970 and bought by O.S.E. around 1988-1989. Many of them are still in use.

[GAZKGK]

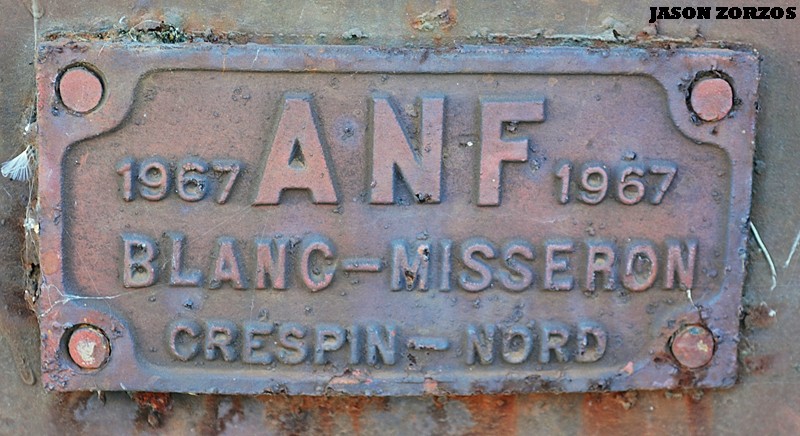

1967

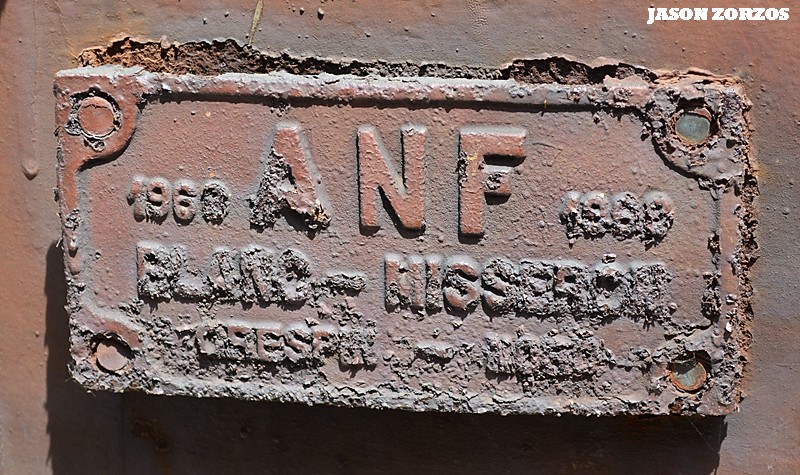

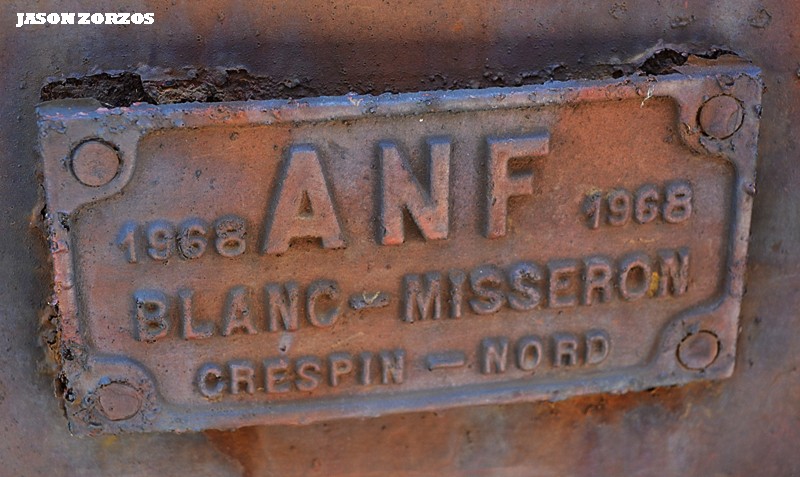

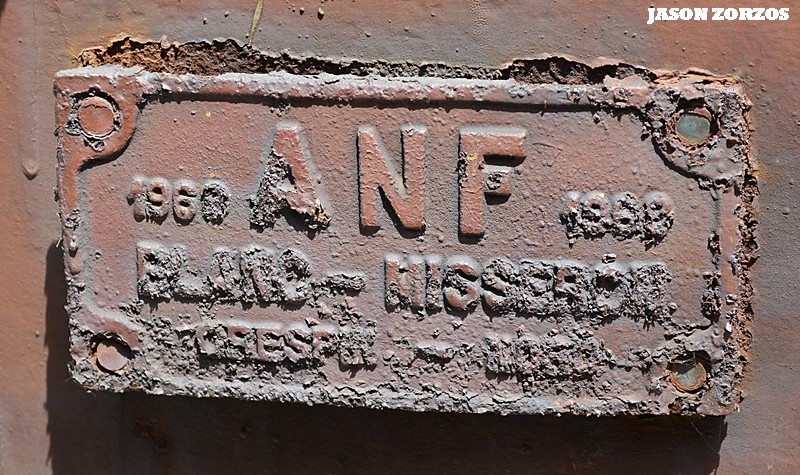

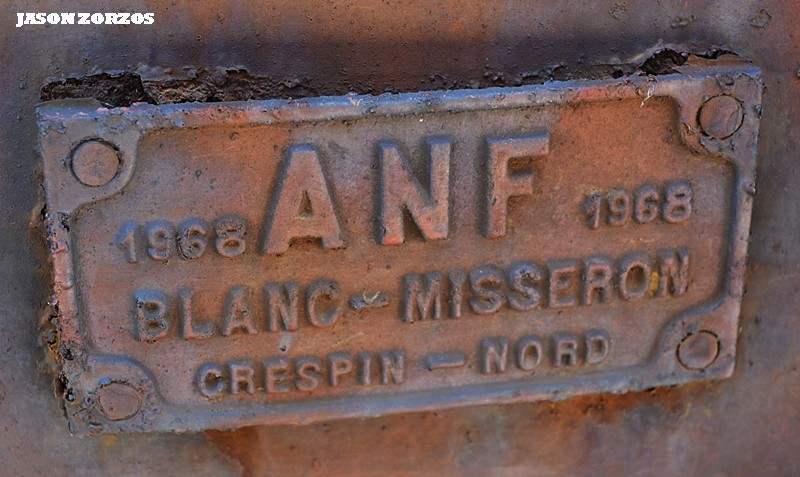

1968 - Some of the 1968 and nearly all of 1969 builder plates are destroyed - i don't know why, they are rusty and some of them are like ''exploded'' ... i tried to find some of the good ones

1969

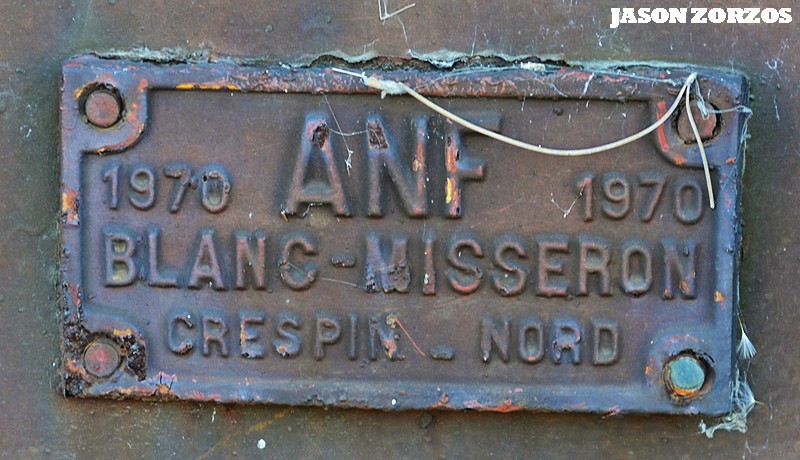

1970

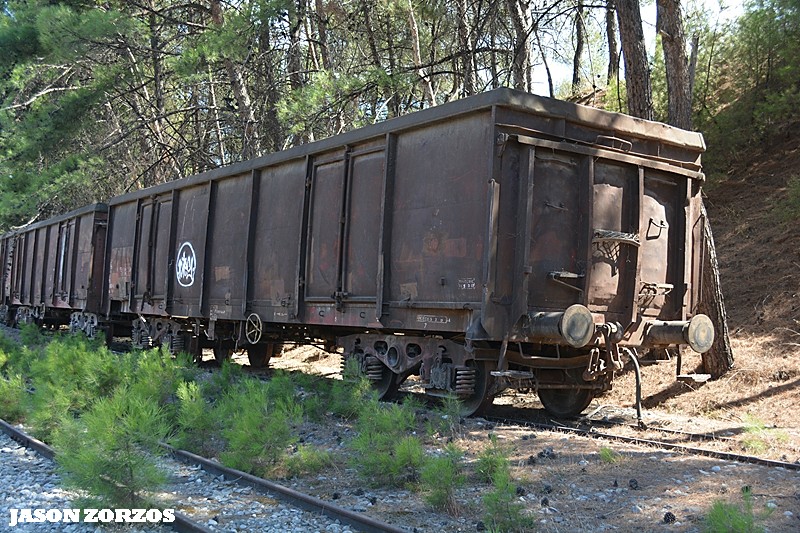

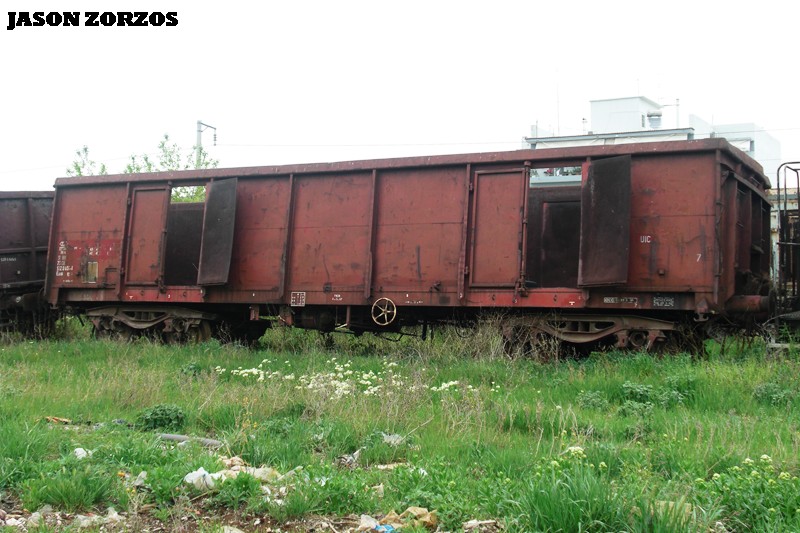

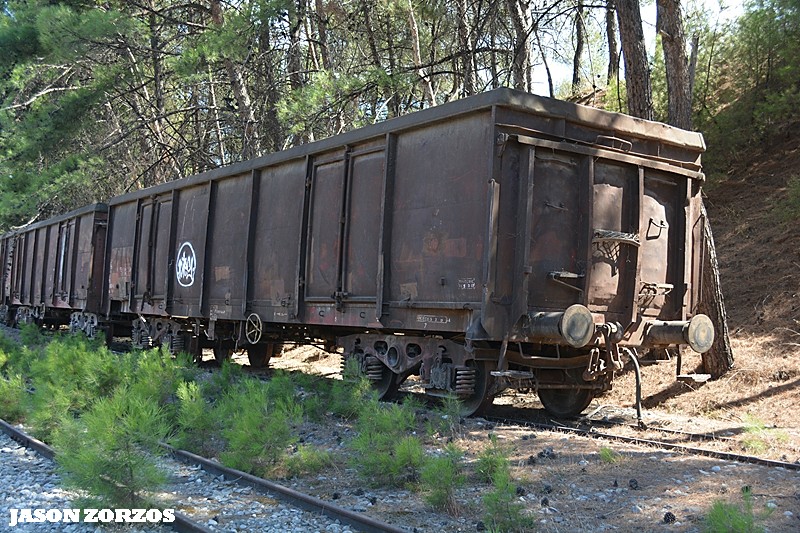

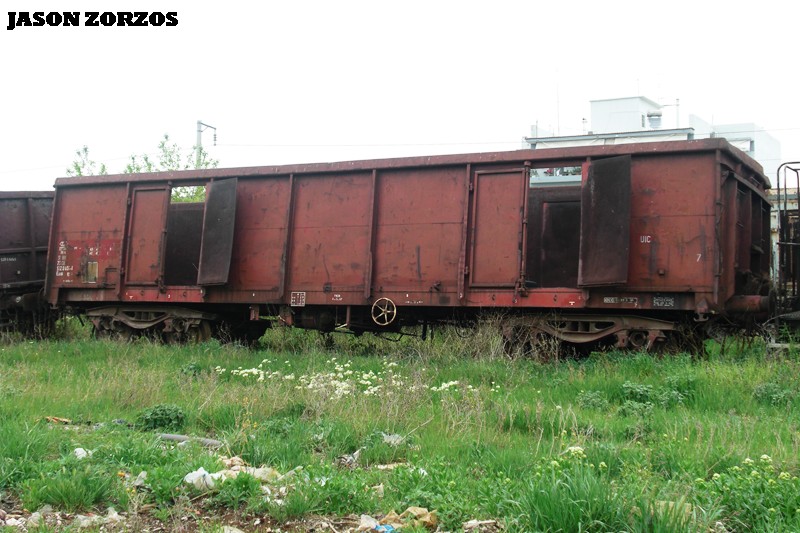

I8 31 73 532 0 036-1 - Nea Magnisia

Ι8 31 73 532 0 077-5 - Latomio

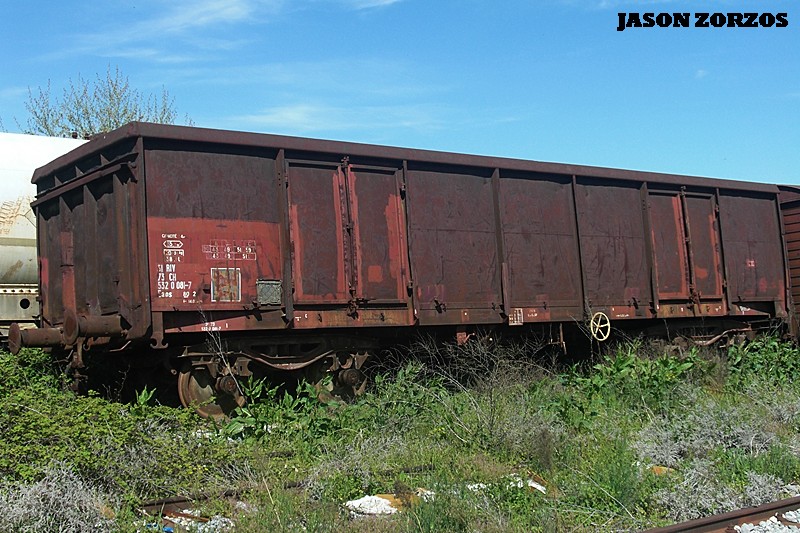

I8 31 73 532 0 081-7 - Lachanokipi

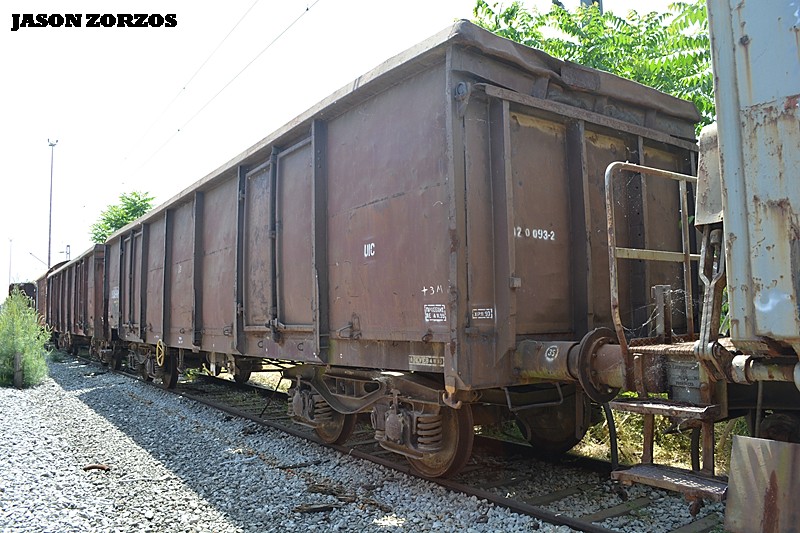

I8 31 73 532 0 093-2 - Gefira

[GAZKGK]

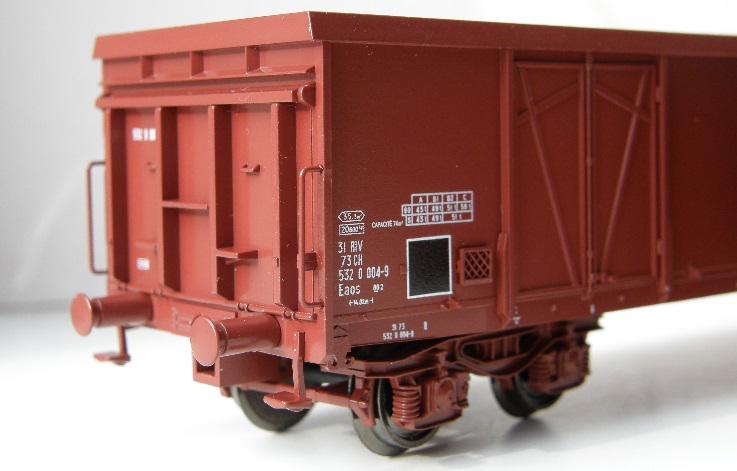

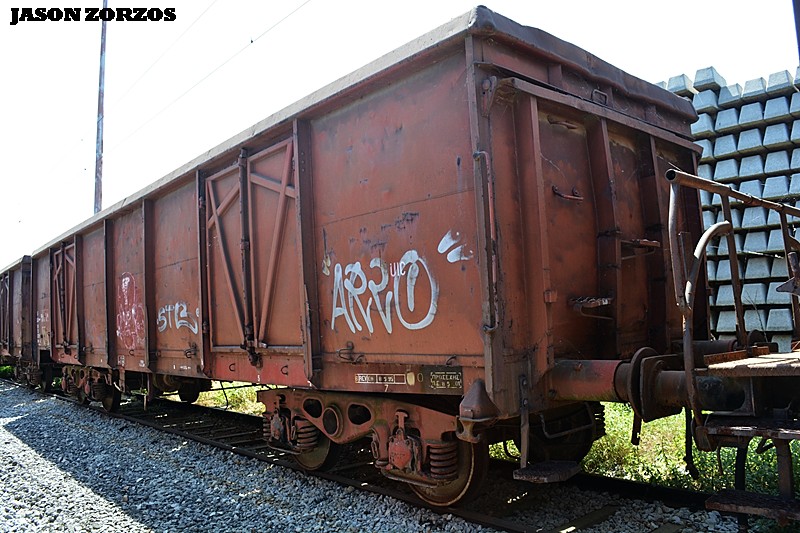

31 73 532 0 004-9 - Gefira

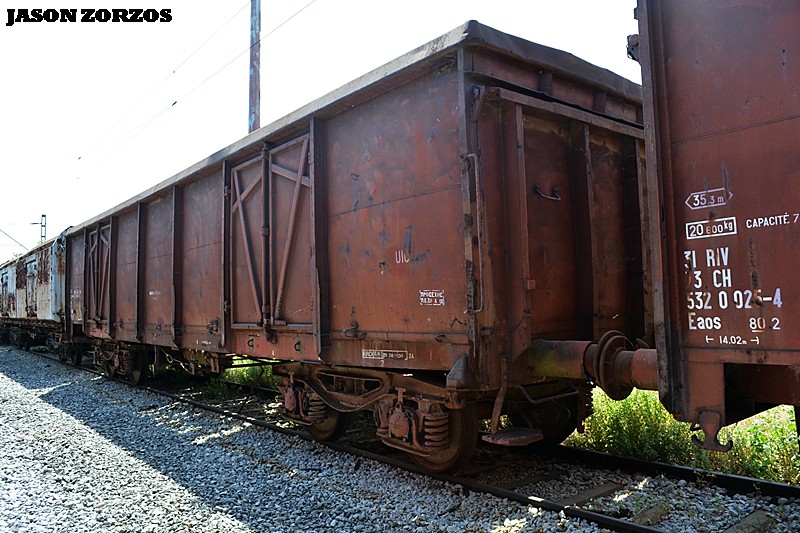

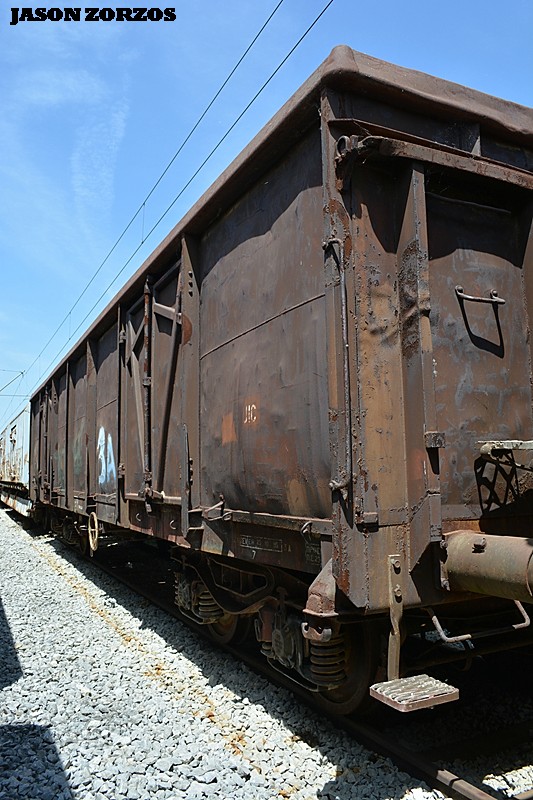

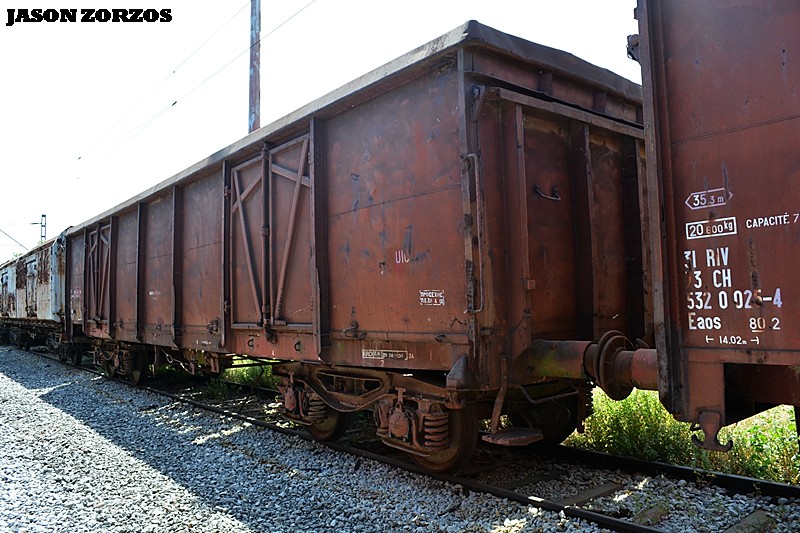

31 73 532 0 025-4 - Gefira

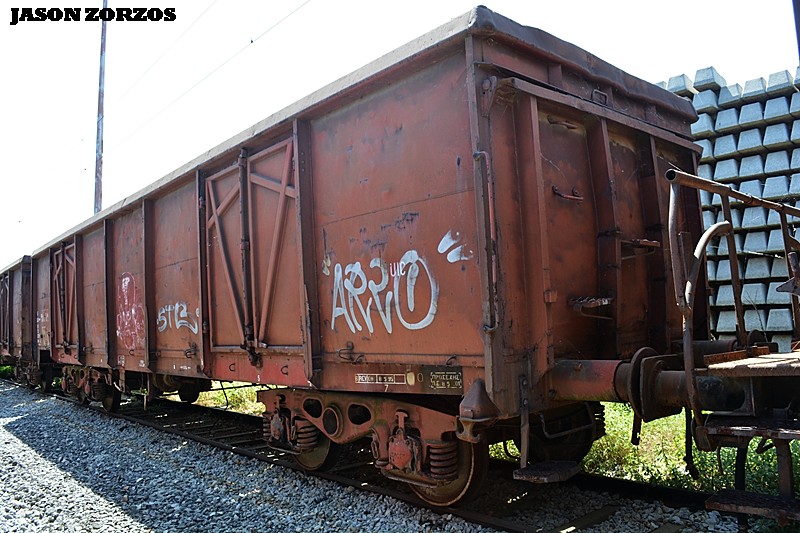

31 73 532 0 086-6 - Gefira

[Olympus]

Hello

My next model project after the OSE Z2 Ggs
is the EAOS with the strips between the doors.

I found for 4-5 months at France a limited model from
Roco (only for France) with number 76803
the model is a basic Klein Modellbahn model with conversions

see the photo Roco-Klein

http://www.bilder-upload.eu/show.php?fi ... 460784.jpg




http://www.bilder-upload.eu/show.php?fi ... 460864.jpg

I would like make 2 model numbers (one model - 15 pieces) from Albertmodell
the photos from 004-9 and 025-4 are perfect, thanks Jason!


best regards Andy

[Olympus]

Good morning

more as in a shop


http://www.bilder-upload.eu/show.php?fi ... 094051.jpg


but i think, i make one model -> 18 pieces
so i have a question to the color, it is oxide red RAL 3009 ?
http://www.ralcolor.com/


and the new bogies for the ...025-4

http://www.bilder-upload.eu/show.php?fi ... 094179.jpg


http://www.bilder-upload.eu/show.php?fi ... 094401.jpg

best regards Andy

[Olympus]

Good Morning

The models are circa ready at June-July (2014 )

best regards Andy

[christo]

Congratulations Andy. Please share some photos whenever possible.

christo.

[Olympus]

Hello to all

The Eaos models are ready
more photos under
viewtopic.php?f=21&t=307

[Dimitris]

Sprung-buffers ready to be installed. During the installment, the springs of appr. 0,5mm will be installed.
Red arrows: buffer-plates & buffers
Green-arrows: buffer-guides (Hülse)



Bufferplate-dia.: 4,25mm in HO = 370mm in prototype (UIC)


Dimitris
